X-Treme Trail Maker Elite 24 Volt Electric Mountain Bike

$525.00

The Trail Maker is a Lithium Battery powered Electric Bicycle with a 300 watt motor.

Clear

SKU: 24TRAILMAKER-E Categories: , ,

Description

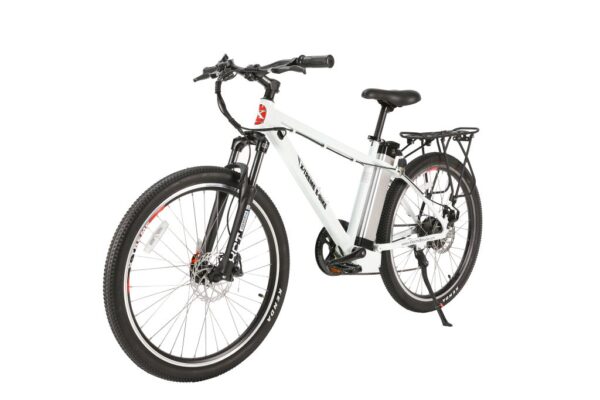

Trail Maker Elite 24 Volt Electric Mountain Bicycle

The Trail Maker Elite 24 Volt Electric Mountain Bicycle is a Lithium Battery powered Electric Bicycle, running on a 300 Watt Zero Resistance rear hub motor. Made with all top of the line components this model includes a 7 Speed Shimano Tourney® Gears & Shifter System, 7 Lightweight Lithium LiPo4 Batteries, a 100% Aluminum Alloy Frame, fully Adjustable Seat, and a MOZO Hydraulic Front Fork.

This electric bicycle will travel 15-20 miles per hour for up to 20 miles on a single charge and it only takes about 4 hours to recharge the battery. The 24 Volt 10 Amp LiPo4 lithium battery pack is lightweight, compact and mounts to the frame under the seat and is hardly noticeable.

Additional information

Color

Aluminum, Black, Metallic Blue, Metallic White

Shipping

Included (FREE)

Drop Shipping

Yes

DeliveryType

Ground

Power Electric
Watts 300 Watts
Amps 9.6 Amp Circuit (7 Battery Cells at 9.6 Amps Each)
Volts 24 Volts (Each Battery Cell is 3.6 Volts)
Batteries 7 Lightweight Lithium LiPo4 Battery Cells in a Sealed Removable Pack
Speed 20 MPH*
Distance Up to 15 to 20 miles per charge* – can still pedal if charge is lost
Tire Size 26 x 1.95 Inch on Aluminum Wheels
Charger 24V Smart Charger Included
Motor Zero Resistance Hub Motor – Motor is in center of rear wheel
Gears & Speeds 7 Speed Shimano Tourney® Gears & Shifter
Tool Kit Included
Throttle Type Variable Speed Control (Twist Throttle) or Pedal & Power Assisted
Key Start Yes
Frame Type/Size 100% Aluminum – Very Light Weight – 18 Inches
Forks MOZO Hydraulic Front Forks
Braking System Front & Rear JAK Disk Brakes
Drive System Zero Resistance Rear Hub Motor (Motor is in rear rim) + Pedal Power
Headlight Yes
Cargo Rack Included
Measurements 72 Inches Wheel to Wheel – 25 Inches Width – 37 Inches to Handlebars – 34 3/4″ to 39 Inches Seat Height
Carton Size (L x W x H) 54 x 9 x 28
Bicycle In Box Weight 63 lbs.
Bicycle Weight 52 lbs.
Suggested Max Weight 350 lbs.
Warranty 1 Year X-Treme Warranty & 1 Year Battery Warranty
Notes *depends on rider weight & terrain

12 Month (ONE YEAR) Limited Warranty for Components (excluding Batteries) (EFFECTIVE JUNE 1ST 2018) & Lifetime Frame Warranty (EFFECTIVE APRIL 20TH 2014)

X-Treme offers a standard ONE Year limited warranty against manufacturer defect and workmanship on bicycle components and a Lifetime frame warranty of all X-Treme Bicycles that are purchased directly from X-Treme or an X-Treme authorized Dealer.

X-Treme bicycle frames are warrantied for the lifetime of the bicycle with the original purchaser. This warranty is for the frame only. X-Treme does not cover any labor charges for transfer of bicycle components from original frame to replacement frame. Replacement frame may be from X-Treme scratch & dent stock. Frame replacement is for manufacturer defect only. This warranty excludes corrosion, paint fade or scratches, impact marks or damage, modifications by purchaser, misuse and act of God.

Original purchase receipt is required to establish proof of purchase and establish warranty start date. Your warranty begins the day the bicycle is delivered to you or purchased from a storefront. This warranty covers manufacturer defects and defaults only. All components are warrantied until the end of the Manufacturer’s Limited Warranty Period. If you receive your replacement part within the last month of the warranty, your replacement part will be warrantied for 30 Days from delivery of the replacement part.

We may request some parts be returned for replacement. The cost to return those parts is the responsibility of the purchaser. We will pay for standard shipping service costs on the first & second warranty shipments to the purchaser. Any additional warranty parts will require the customer to pay all shipping costs.

Your warranty will be void if any modifications are made to the original design of the bike. Warranty is non-transferable and we will NOT offer a warranty on any products purchased from second hand sellers, non-authorized Dealers, products that are purchased used or products that are purchased via outlet centers. X-Treme will, however, offer free lifetime technical support access on these products & if parts are needed those parts may be purchased direct from X-Treme.

What is not covered by Manufacturer’s Limited Warranty?

We do not cover normal wear and tear on any components. Parts such as brake pads, spokes, hand grips, cables and housing, tires, tubes, and chains will not be warrantied unless defect upon arrival.

We do not cover scratch, dents or other cosmetic damage not caused by X-Treme.

We do not cover components that are compr

24 Volt Li Elite Mountain Bicycle User Manual
