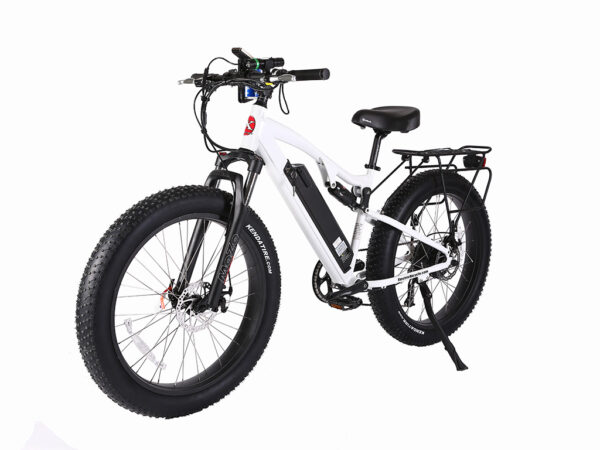

Rocky Road 48 Volt 10 Amp High End Electric Fat Tire Straight Frame Mountain Bicycle
The Rocky Road 48 Volt Lithium Powered Electric Fat Tire Mountain Bicycle is a Lithium Battery powered Electric Bicycle cranking out 500 Watts from the Bafang High Torque Zero Resistance Clutch Motor. This bike features a lightweight, compact lithium LiPo4 48 volt 10.4 Ah integrated battery pack providing a considerable amount of power greater than our 24 volt or 36 volt models. This bike comes with everything Aluminum – every bolt, every nut, every nipple, every spoke. That means no rust! The 100% hand welded lightweight aluminum frame bicycle has Atlus Shimano 9-Speed Gears & Shifting System, oversized MOZO Front Hydraulic Suspension & KS Rear Shock Suspension, aluminum rims with quick release axle on the front and a water proof quick disconnect on the rear and oversized Kenda 26 x 4.0 tires.
The Rocky Road comes equipped with the King Meter 5 Speed Smart Power Assist System (SPAS). The electronics of the X-Treme Electric Bicycle are controlled via rider input on the LCD screen attached to the handlebars. Smart PAS with 5 speeds will enable the bike to operate nearly twice as efficient as a non-smart assist e-bike, because you select the power consumption (speed controls 1-5 setting) on the LCD during your ride. This feature will allow your Rocky Road 48 Volt to possibly reach or exceed 70+ miles per charge when using low SPAS while always pedal assisting on flat ground under perfect conditions with a light weight rider. The LCD also indicates Speed, Distance and Battery Life.
The Rocky Road 48 Volt Lithium Powered Electric Mountain Bicycle is faster than any model we sell. It has been tested climbing a 5-7% mountain grade continuously for 45 minutes at 18 mph while having to slow down for hair pin turns.
Front & rear Tektro disk brakes are standard on the Rocky Road 48 Volt Electric Mountain Bicycle along with true VELO Brand Hand Grips & Mountain Bike Seat.
This electric mountain bicycle comes standard with a high quality beverage holder. There is no extra charge! This is a one of kind bike. No other brands offer a Full Suspension Fat Tire Bike, only X-Treme! Rear cargo rack is not included but can be purchased separately.
Black, Metallic White
|Amps||10.4 AH Integrated Lithium Battery|
|Battery||48 Volt LiPo4 Lithium (lightweight)|
|Drive System||Chain Driven by Rear Hub Motor or Pedal Power|
|Distance||Up To 70 Miles Range Using Low PAS & Flat Terrain While Pedal Assisting|
|Speed||25 MPH* On Throttle Only (Much Faster If You Pedal Assist 45+ MPH)|
|Charger||48 Volt Output UL Certified Charger (Charging Time +/- 3 Hours)|
|Tire Size||Kenda Oversized Mountain Fat Tire & Tube – 26 x 4.0 Inch on Aluminum Wheels|
|Motor||Bafang 500 Watt Zero Resistance Rear Hub Motor With Clutch|
|Controller||48 Volt 15 Amp Sealed Smart Controller|
|Braking System||Tektro Disk Brakes|
|Pedals:||Wellgo Aluminum Pedal Set|
|Front Wheel:||Joytech Quick Release Hub|
|Throttle Type||Variable Speed Thumb Throttle – SPAS Power Assisted – Pedal Power|
|LCD Display||King Meter LCD Smart PAS Digital System|
|Cargo Rack||Not Included. Can be purchased separately.|
|Frame Type/Size||6061-T6 Temper Aluminum Alloy – Very Lightweight|
|Forks||Oversized MOZO Hydraulic Front Forks|
|Suspension||Front Hydraulic Suspension Included & KS Rear Shock Suspension|
|Front Sprocket||Aluminum Alloy Sprocket|
|Derailleur||Shimano® 9-Speed Atlus Gears & Shifter|
|Seat & Post||Aluminum Alloy Adjustable Seat Post & Velo Mountain Bike Seat|
|Quick Release||Front & Rear Wheels Have Quick Release Axles – Flip Lever|
|Handle Bars||Aluminum Alloy Mountain Bike Handle Bars|
|Head Light||Yes, included as free accessory add on – Battery Operated Snap-On LED (Not covered under warranty)|
|Accessories||Drink Holder On Handle Bars Included. Rear Rack pictured is not included but can be purchased separately.|
|Bicycle Measurements||Max Seat Height = 40.5″ Inches / Min Seat Height = 32.5″ Inches / Handle Bar Height = 41.75″ Inches|
|Carton Size (L x W x H)||63 x 10 x 30|
|Bicycle In Box Weight||83 lbs|
|Bicycle Weight||67 lbs|
|Suggested Max Weight||350 lbs.|
|Warranty||1 Year Warranty & 1 Year Battery Warranty|
|Notes||*depends on rider weight & terrain Distance obtainable when using SPAS|
12 Month (ONE YEAR) Limited Warranty for Components (excluding Batteries) (EFFECTIVE JUNE 1ST 2018) & Lifetime Frame Warranty (EFFECTIVE APRIL 20TH 2014)
X-Treme offers a standard ONE Year limited warranty against manufacturer defect and workmanship on bicycle components and a Lifetime frame warranty of all X-Treme Bicycles that are purchased directly from X-Treme or an X-Treme authorized Dealer.
X-Treme bicycle frames are warrantied for the lifetime of the bicycle with the original purchaser. This warranty is for the frame only. X-Treme does not cover any labor charges for transfer of bicycle components from original frame to replacement frame. Replacement frame may be from X-Treme scratch & dent stock. Frame replacement is for manufacturer defect only. This warranty excludes corrosion, paint fade or scratches, impact marks or damage, modifications by purchaser, misuse and act of God.
Original purchase receipt is required to establish proof of purchase and establish warranty start date. Your warranty begins the day the bicycle is delivered to you or purchased from a storefront. This warranty covers manufacturer defects and defaults only. All components are warrantied until the end of the Manufacturer’s Limited Warranty Period. If you receive your replacement part within the last month of the warranty, your replacement part will be warrantied for 30 Days from delivery of the replacement part.
We may request some parts be returned for replacement. The cost to return those parts is the responsibility of the purchaser. We will pay for standard shipping service costs on the first & second warranty shipments to the purchaser. Any additional warranty parts will require the customer to pay all shipping costs.
Your warranty will be void if any modifications are made to the original design of the bike. Warranty is non-transferable and we will NOT offer a warranty on any products purchased from second hand sellers, non-authorized Dealers, products that are purchased used or products that are purchased via outlet centers. X-Treme will, however, offer free lifetime technical support access on these products & if parts are needed those parts may be purchased direct from X-Treme.
What is not covered by Manufacturer’s Limited Warranty?
We do not cover normal wear and tear on any components. Parts such as brake pads, spokes, hand grips, cables and housing, tires, tubes, and chains will not be warrantied unless defect upon arrival.
We do not cover scratch, dents or other cosmetic damage not caused by X-Treme.
