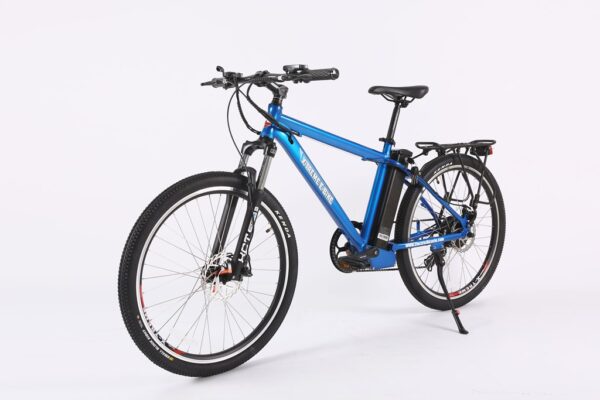

Trail Maker Elite Max 36 Volt Electric Mountain Bicycle
The Trail Maker Elite Max 36 Volt Electric Mountain Bicycle is a Lithium Battery powered Electric Bicycle, running on a 350 Watt Zero Resistance rear hub motor. Made with all top of the line components this model includes a 7 Speed Shimano Tourney® Gears & Shifter System, 7 Lightweight Lithium LiPo4 Batteries, a 100% Aluminum Alloy Frame, fully Adjustable Seat, and a Suntour hydraulic front fork. This bike comes equipped with a LED Panel for the PAS (Pedal Assist System) attached to the handlebars. The PAS provides 4 speed options – Zero (Pedal Power Only), Low, Medium and High.
This electric bicycle will travel 20+ miles per hour for 30+ miles on a single charge and it only takes about 4 hours to recharge the battery. The 36 Volt 10 Amp LiPo4 lithium battery pack is lightweight, compact and mounts to the frame under the seat and is hardly noticeable.
Aluminum, Black, Metallic Blue
|Amps||10 Amp Circuit (7 Battery Cells at 10 Amps Each)|
|Volts||36 Volts (Each Battery Cell is 3.6 Volts)|
|Batteries||7 Lightweight Lithium LiPo4 Battery Cells in a Sealed Removable Pack that is hidden inside bike frame|
|Distance||Up to 30+ miles per charge* – can still pedal if charge is lost|
|Tire Size||26 x 1.95 Inch on Aluminum Wheels|
|Charger||36V Smart Charger Included|
|Motor||Zero Resistance Hub Motor – Motor is in center of rear wheel|
|Gears & Speeds||7 Speed Shimano Tourney® Gears & Shifter|
|Throttle Type||Variable Speed Control – Twist Throttle – or – Pedal & Power Assisted (PAS) – or – Turn Off Power & Pedal Only|
|PAS System||LED Panel with 4 Speed Options – Zero (pedal only)/Low/Med/High|
|Frame Type/Size||100% Aluminum – Very Light Weight – Men’s Frame|
|Forks||SA Suntour® XCT Front Forks|
|Suspension||Hydraulic Front Suspension included|
|Braking System||Front & Rear JAK Disk Brakes|
|Drive System||Chain Driven by Rear Hub Motor within rear rim or Pedal Power|
|Head Light||Yes – Battery Operated Snap-On LED (Not covered under warranty)|
|Bicycle Measurements||72 Inches Wheel to Wheel – 25 Inches Width – 37 Inches to Handlebars – 34 3/4″ to 39 Inches Seat Height|
|Carton Size (L x W x H)||55 x 9 x 28|
|Bicycle In Box Weight||
|Bicycle Weight||52 lbs.|
|Suggested Max Weight||350 lbs.|
|Warranty||1 Year Warranty & 1 Year Battery Warranty|
|Notes||*depends on rider weight & terrain|
12 Month (ONE YEAR) Limited Warranty for Components (excluding Batteries) (EFFECTIVE JUNE 1ST 2018) & Lifetime Frame Warranty (EFFECTIVE APRIL 20TH 2014)
X-Treme offers a standard ONE Year limited warranty against manufacturer defect and workmanship on bicycle components and a Lifetime frame warranty of all X-Treme Bicycles that are purchased directly from X-Treme or an X-Treme authorized Dealer.
X-Treme bicycle frames are warrantied for the lifetime of the bicycle with the original purchaser. This warranty is for the frame only. X-Treme does not cover any labor charges for transfer of bicycle components from original frame to replacement frame. Replacement frame may be from X-Treme scratch & dent stock. Frame replacement is for manufacturer defect only. This warranty excludes corrosion, paint fade or scratches, impact marks or damage, modifications by purchaser, misuse and act of God.
Original purchase receipt is required to establish proof of purchase and establish warranty start date. Your warranty begins the day the bicycle is delivered to you or purchased from a storefront. This warranty covers manufacturer defects and defaults only. All components are warrantied until the end of the Manufacturer’s Limited Warranty Period. If you receive your replacement part within the last month of the warranty, your replacement part will be warrantied for 30 Days from delivery of the replacement part.
We may request some parts be returned for replacement. The cost to return those parts is the responsibility of the purchaser. We will pay for standard shipping service costs on the first & second warranty shipments to the purchaser. Any additional warranty parts will require the customer to pay all shipping costs.
Your warranty will be void if any modifications are made to the original design of the bike. Warranty is non-transferable and we will NOT offer a warranty on any products purchased from second hand sellers, non-authorized Dealers, products that are purchased used or products that are purchased via outlet centers. X-Treme will, however, offer free lifetime technical support access on these products & if parts are needed those parts may be purchased direct from X-Treme.
What is not covered by Manufacturer’s Limited Warranty?
We do not cover normal wear and tear on any components. Parts such as brake pads, spokes, hand grips, cables and housing, tires, tubes, and chains will not be warrantied unless defect upon arrival.
We do not cover scratch, dents or other cosmetic damage not caused by X-Treme.
